China Automobile Cable Manufacturers Suppliers - Customized Automobile Cable Made in China

The Automobile Cable Manufacturer!

Linoya's high-speed data transmission cables, based on single-pair twisted-pair technology, meet the harsh automotive environments such as high temperature, vibration and strong electromagnetic interference. They provide high-bandwidth, low-latency and high-reliability physical connection support for in-vehicle high-speed communication, and adapt to the development needs of intelligence and connectivity of new energy vehicles.
I. Implementation Standards

International Standards: IEEE 802.3bw (100BASE-T1, 100Mbps), IEEE 802.3bp (1000BASE-T1, 1Gbps), IEEE 802.3ch (10GBASE-T1), etc., jointly formulated by OPEN Alliance SIG and IEEE.

Domestic Standards: GB/T 25085.12 and ISO 19642-12, which specify the dimensions, performance and test requirements of automotive unshielded single-pair twisted-pair radio frequency cables, and are compatible with in-vehicle communication protocols such as 100BASE-T1/1000BASE-T1.

Application Scope

Intelligent Driving System: High-speed data transmission between ADAS cameras, millimeter-wave radars, lidars and domain controllers, supporting real-time interaction of autonomous driving perception signals.

Intelligent Cockpit: Transmission of high-definition video, audio and control signals between central control screens, instrument clusters, in-vehicle entertainment systems and T-BOX.

Vehicle Network Architecture: Interconnection of central gateways, domain controllers and regional controllers to build an in-vehicle high-speed Ethernet backbone network, replacing traditional CAN/LIN buses and adapting to the upgrading of electronic and electrical architectures of new energy vehicles.

Diagnosis and Flashing: High-speed communication between on-board OBD interfaces, diagnostic instruments and vehicle ECUs, supporting over-the-air (OTA) software upgrades and rapid reading of fault data.

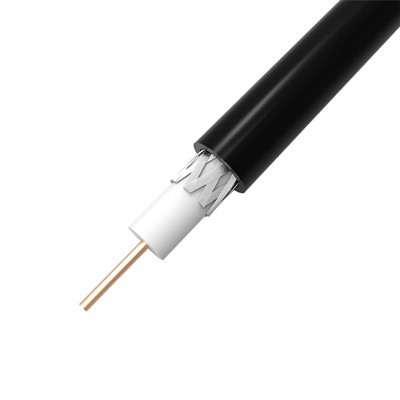

贝博艾弗森官网:Automobile Cable Solution
Our automotive cables deliver reliable power and signal transmission for modern vehicles. Designed with high-temperature resistance, excellent flexibility, and superior shielding against EMI/RFI interference, they meet rigorous automotive
read more

Why choose us

High Quality

With years of expertise in the field, we specialize in the production and distribution of high-quality cables that meet stringent international standards.Our state-of-the-art manufacturing facility utilizes advanced technology and equipment to ensure precision and consistency in every product.

Our Certifications

Is a ISO 9001, ISO 14001, and ISO 45001 certified company. We are available globally with our Wires & Cables products certified to BASEC, UL, CSA, VDE, TUV Rheinland, & more and compliant to REACH and RoHS ensuring we adhere to global standards of quality and safety.

International market

Our products sell well in more than 30 countries and regions in the Middle East, Africa, South America and Southeast Asia, and we have established sales outlets in many major cities in China.

Speciﬁcation

Conductor O.D.

(mm)

Insulation material

Insulation O.D.

Aluminium foil

shielding

Braided shield

coverage %

Outer diameter

(mm)

LY174LL(xx)-50

7/0.16

Polypropylene

1.52±0.05

AL/PETP/AL

85min

2.80±10

LY174LL(xx)-50

1/0.45

XL-PE

1.52±0.05

AL/PETP

85min

2.80±10

LY-462(xx)-50

7/0.16

XL-PE

1.52±0.05

AL/PETP/AL

80min

2.80±10

LY-462(xx)-50

7/0.16

Polypropylene

1.52±0.05

AL/PETP/AL

80min

2.80±10

RTK031(xx)-50

7/0.27

Foamed Polypropylene

2.10±0.05

AL/PETP/AL

90min

3.30±10

RTK031(xx)-50

7/0.254

Foamed Polypropylene

2.05±0.05

AL/PETP/AL

90min

3.30±10

RTK044(xx)-50

1/0.86

Foamed Polypropylene

2.40±0.05

AL/PETP/AL

90min

3.55±10

RTK044(xx)-50

1/0.86

Foamed Polypropylene

2.35±0.05

AL/PETP/AL

90min

3.35±10

LY-546

7/0.254

Polypropylene

1.26±0.05

TPE-S

3.80±10

LY-647-4

7/0.154

Polypropylene

0.95±0.05

AL/PETP/AL

85min

4.10±10

LY-686-3

7/0.16

Foamed Polypropylene

0.95±0.05

AL/PETP/AL

85min

3.80±10

Polypropylene

Functions of Automobile Cable

Power and Signal Transmission

Car wiring is the main part of your car's electrical system. It sends power to things like lights, the engine, and radios. Without good wiring, these parts won't work, and your car won't run. Wiring also sends signals between sensors and control units. This allows features like driver assistance and car communication systems to work.

Resistance to Environmental Factors

Car cables deal with tough environments all the time. They must handle heat, cold, water, and chemicals to keep working. Special insulation protects them from damage, short circuits, and signal problems. Some cables can handle temperatures from -40°C to 125°C or more. This makes them reliable in very hot or cold weather.

Other Applications of Automotive Cable

Seat belt cables

A seat belt pre-tensioner needs a curved cable guide and a flexible cable alike, usually with fitted ends.

Shift cable

The shift cable, as found on a vehicle with automatic transmission, stands to connect the shifter in the vehicle with the transmission. When motion travels through the transmission shift cable, the transmission linkage moves the shift arm.

Hood latch cable

Also called the ‘hood release cable'- this is the wire rope that allows you to open up the hood of your car. It typically runs from the handle to the latch under the hood.

Heater control cables

The part that links a car's heater to the dashboard, a heater control cable helps the user control the temperature in the vehicle.

Automobile cables of different categories

American Standard
At present , three basic XL wires may be used in the automotive industry: TXL, GXL and SXL. The number of copper strands is basically the same, but the main difference is the insulation thickness. TXL has the thinnest insulation and SXL has the thickest insulation.These three types of cables have different sizes and specifications under the same area.

GXL Cable
GXL cable is a thin-walled single conductor automobile primary line. It also has cross-linked polyethylene (XLPE) insulation, and the rated voltage is 50V. It works best in the temperature range from -51 ° C to +125 ° C. It is mainly used in the engine compartment where high heat resistance is required.

TXL Cable
TXL cable is a kind of thin-walled cross-linked polyethylene insulated single core conductor, which is used in automotive applications requiring higher heat resistance, small diameter and minimum weight.

SXL Cable

SXL wire is a single conductor primary wire with cross-linked polyethylene (XLPE) insulation. The temperature range of Sxl conductor is -51 ° C to 125 ° C, with rated voltage. Sxl wire is a kind of thick wall special wire, which is designed for high temperature applications, including engine compartment.

Packing Details
We will packing by professional export packing,safety against breakage, finally into the wooden cases/ carton/pallet or customized package.

Delivery Details
We can deliver by SEA,air,rail transportation,the China-Europe Railway Express etc.
TNT, DHL,UPS, FEDEX, EMS，S.F EXPRESS etc.

we are here for you

write to us

Email:inquiry@yataixuanhao.com

visiting us

NO.2, FORTH WEST INDUSTRIAL ROAD, SONGSHAN LAKE INDUSTRIAL PARK, DONGGUAN CITY, Guangdong Porvince 523000, China (Headquarters)

WeChat:

ID: +86-15602610696

Contact Directly:

Phone: +86-15602610696

FAQ

Q: Does Linoya provide samples, and if so, are they free?

A: Linoya can provide free samples (normally with in 10 Pcs) under the delivery term of EXW.

Q: What is your lead time?

A: For sample preparation, it typically takes 10 days. The lead time for mass production generally ranges from 14 to 25 days, depending on the product type.

Q: Can I request custom specifications for cables and wires?

A: Certainly. We allow customization based on your specific requirements.

Q: What is your warranty policy?

A: We offer a standard 5-year warranty on our products, underscoring our commitment to long-term reliability and customer satisfaction.

Q: Can I buy samples placing orders?

A: Yes.Please feel free to contact us.

Q: What is your payment term?

A: T/T,Western Union,Alipay,MoneyGram,and Paypal.This is negotiable.

Q: What is the shipping method?

A: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.

Q: Why is strong insulation important for car cables?

A: Strong insulation keeps car cables safe from weather. It stops water and other things from hurting wires, lowering electrical risks. Good insulation also stops shorts and fires.

Q: How do good wires help cars work better?

A: Good wires help cars by sending power well. They cut energy loss, so car parts get enough power. This makes cars work better and saves energy.

Q: How do green materials in car cables help the Earth?

A: Green materials in car cables cut bad air during making. Makers use safe ways to lower harm. These materials help keep the air clean and the planet healthy.

Q: Why is recycling important for car cable sustainability?

A: Recycling is key for car cable sustainability. It cuts waste by reusing materials. Many makers plan for recycling, helping the Earth by using things again.

Q: How can I find the right cable size for my car?

A: The cable size depends on the power it carries and its length. Thicker cables (lower numbers) carry more power safely. Using the wrong size can cause power loss and lower performance.

Q: What makes PVC and XLPE insulation different?

A: PVC is cheaper and good for simple wiring jobs. XLPE is stronger, lasts longer, and handles heat better. It's best for hot or tough places.

Q: Why do car cables need to resist heat?

A: Car cables face high heat, especially near engines. Heat resistance stops the insulation from breaking or melting. This keeps the cables working safely.

Q: What are shielded cables, and when are they needed?

A: Shielded cables block interference from other electronics. They are used in systems like GPS, radios, and driver assistance tools. This keeps signals clear and reliable.

Q: How can I check if cables meet safety standards?

A: Look for labels from groups like SAE or IEC. These show the cables are tested for safety and strength.

We are one of the most reliable automobile cable manufacturers and suppliers in China since 1997. With abundant experience, we warmly welcome you to buy bulk customized automobile cable made in China here from our factory. Welcome to view our website for more information.
