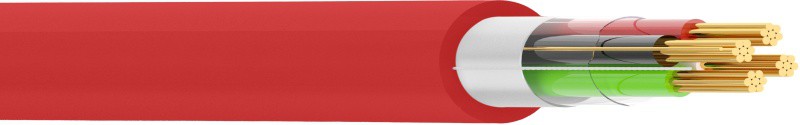

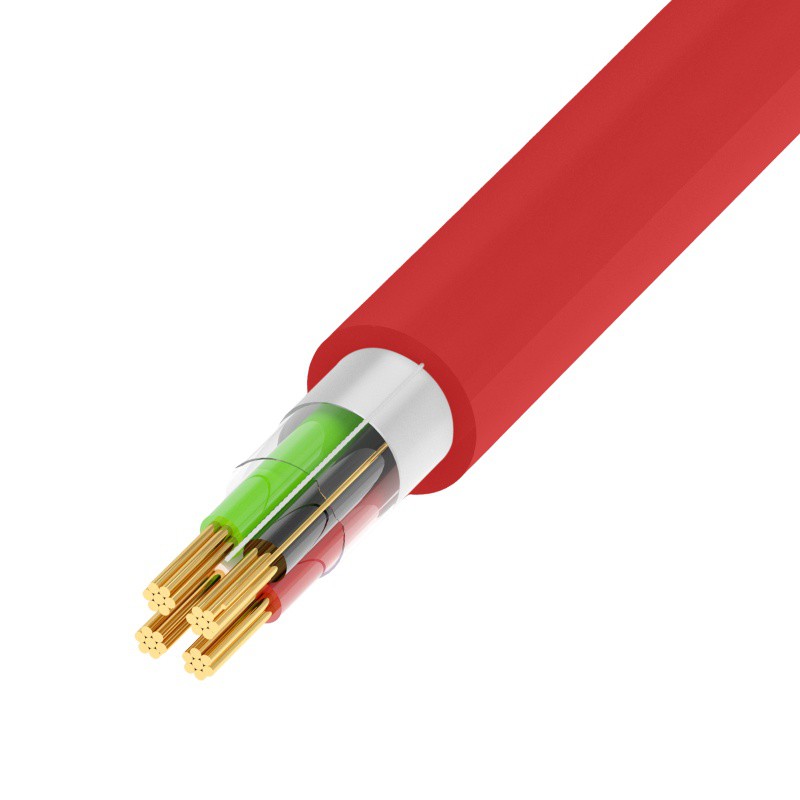

UL1424 Power Limited Fire-Alarm Cables-FPLR&FPL
APPLICATION & FEATURES
Cables primarily used in circuits of emergency lighting, fire observation, signal - sensing sensor systems, supply and exhaust fan systems, communication and intercom systems, uipment control systems, fire pumps, and fire alarm systems With high flame-retardant properties, the cable exhibits strong self-extinguishing capabilities Standard thickness, easy to peel and cut;
Tested physically & electrically in accordance with NEC standards Free from restricted metals and hazardous compound
ECHNICAL CHARACTERISTICS
CONDUCTOR
Solid or stranded bare copper
INSULATION
FRPVC
ASSEMBLY
Conductors grouped concentrically
SCREENING(Optional)
Aluminium / Polyester tape +Drain wire
SHEATH
FRPVC
> ASTM B3
> Indoor Installation
ELECTRICAL CHARACTERISTICS
Test Voltage
2000V
Insulation Resistance
>200 MΩ/Km
Operating Temperature
-10°C / +105°C
Bending Radius
5×OD (Outer Diameter)
Operating Voltage
300V
|
Nominal Section |
OD +/- |
Conductor |
|
2x18AWG |
4.6 |
21.4 |
|
3x18AWG |
4.9 |
21.4 |
|
4x18AWG |
5.3 |
21.4 |
|
5x18AWG |
5.8 |
21.4 |
|
6x18AWG |
6.3 |
21.4 |
|
... |
||
|
2x16AWG |
5.2 |
13.5 |
|
3x16AWG |
5.5 |
13.5 |
|
4x16AWG |
6.0 |
13.5 |
|
5x16AWG |
6.6 |
13.5 |
|
6x16AWG |
7.2 |
13.5 |
|
... |
||
|
2x14AWG |
6.0 |
8.45 |
|
3x14AWG |
6.3 |
8.45 |
|
4x14AWG |
7.0 |
8.45 |
|
5x14AWG |
7.8 |
8.45 |
|
6x14AWG |
8.4 |
8.45 |
|
... |
STANDARDS
> UL Standard: UL 1424
> Insulation and Sheathing: UL1581
> Flame Non-Propagation: UL1666
PACKAGING
100/200 meters
500 meters
